24"
f3.5 Dream Astrograph |
|
|
|
The 24" Dream Astrograph was redesigned in April
2007 to accomodate a 4" coma corrector and heavier imaging
train. To see the final telescope design, click
here. |
|

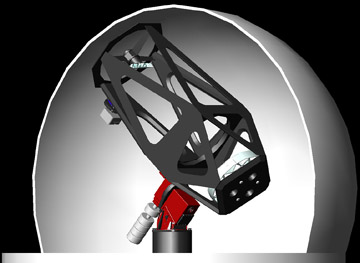

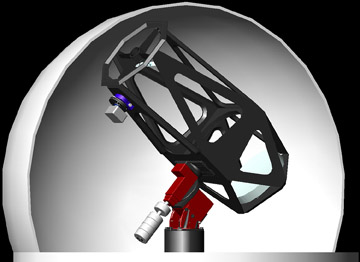

The rendering to the left shows the 24"
f3.5 Dream Astrograph on a Paramount
ME robotic mount. |
|
|
|
Click below to see the stiffness of just one strut
sample for this cutting edge structure. |
|
|
|
|
The Optical Tube Assembly, which includes an electronic
focuser and 3" coma corrector,
will weigh roughly 110 lbs. |
|
The telescope uses all cellular
mirrors: the 7.75" minor axis secondary
will weigh 2.7 lbs and 24.75" cellular
primary (24.0" clear aperture) will weigh only 35.0
lbs. |
|
The renderings show a rotator between the focuser
and the carbon fiber structure. This accessory is currently under
feasibility evaluation. |
|
|
|
|
|
Options include shrouds
and actuated covers for all optical
surfaces. Neither are shown in the renderings on this page. |
|
|

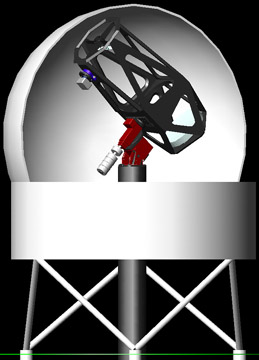

Click below for a rendering of a California installation
of a 24" Dream Astrograph. |
|
|
|
|
|
|
