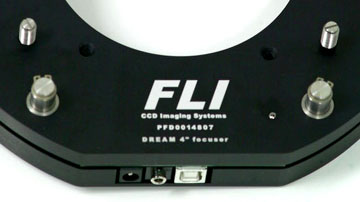

Click on the small image to see the push/pull locations
on the 4" Dream PDF. |
|
|
|
This eliminates the need for a custom adaptor on the
OTA side of the focuser. It also allows a much wider connection
to the OTA. |
|

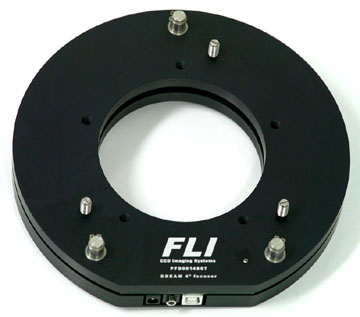

You can (faintly) see the three large 3/8"-24
tapped holes around the periphery of the unit, which is 8"
OD. |
|
The wider connection means a more stable platform
and finer adjustments for tip/tilt. |
|
Additional metal was left in the motor side's plate,
next to the 3/8"-24 tapped holes. This additional metal
is used for the push screw to drive against, which would have
caused flexure in the standard PDF unit. |
|
|
|
|
