20" f10 Classical
Cassegrain |
|
|
|
20" f10 Ritchey-Chretien
Cassegrain |
|
|
|
|
|
Above chart shows on axis lower left on chart and
off axis upper right in the chart. Off axis is at the edge of
a 2.0" diameter field. Total field at 2.0" diameter
is 0.57294 degrees. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

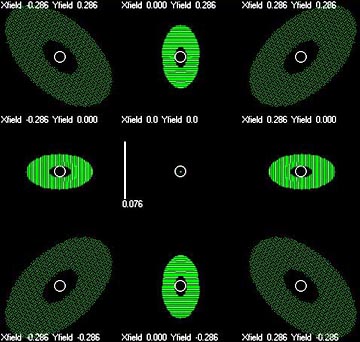

Another way to view the chart is through this total
field spot diagram. Center is on axis, white circle is the 13.4
micron airy disk diameter, outer spots outer edges of field (corners
being the farthest out). Vertical white bar just left of center
is 76 microns tall. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Yet another way to view the star pattern. This however
is the star's Point Spread Function (visual appearance) off axis,
at the edge of the 2.0" diameter full field. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Both of the above optical systems have the following
parameters: |
|
system focal length |
M1 focal ratio & focal length |
back focus* |
100% illumination diameter |
M2 size |
M2 magnification |
5080/200" |
f3.0 & 1524/60" |
431.8/17.0" |
50.8/2.0" |
161.09/6.34" |
3.33 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
M1 to M2 spacing** |
M2 baffle diameter |
Aspheric Constant M1 |
Aspheric Constant M2 |
Aspheric Constant M1 |
Aspheric Constant M2 |
1072.66/42.23" |
208.22/8.2" |
-1 |
-3.4490 |
-1.0757 |
-4.1946 |
|
|
Classical Cassegrain |
Classical Cassegrain |
Ritchey-Chretien |
Ritchey-Chretien |
|
|
|
|
|
|
|
|
|
|
* Back focus is defined by the distance from the front
optical surface of the primary to the focal plane. |
** This parameter is measured from the optical surface
of the secondary to the optical surface of the primary. Since
these two optical surfaces face each other, this measurement
does not include the thickness of each mirror. |
|
|
|
|
